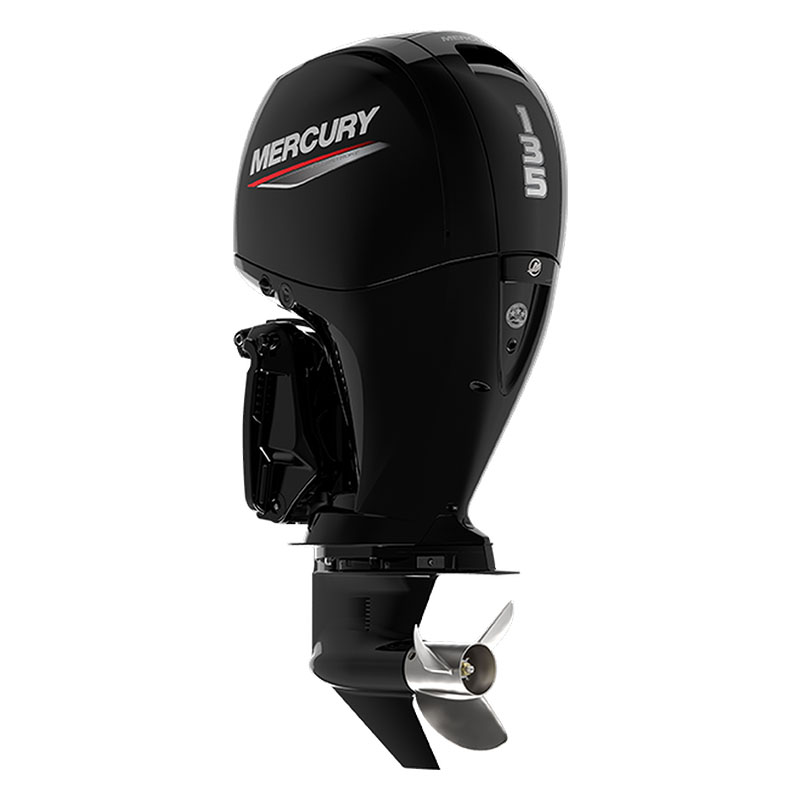

FourStroke 135hp

Category:

Description

Delivers the ultimate in compact versatility. Great for aluminum console, bass, offshore fishing, inflatable rigid hull (RIB), fish & ski, and runabout boats, pontoons and tritoons.

SPECIFICATIONS – 135

HP / kW 135 / 101
Engine type 8-valve single overhead cam (SOHC)

Inline 4

Displacement (L) 3.0
Full throttle RPM 4800-5300
Air induction Performance-Tuned Scroll Intake Manifold
Fuel induction system Computer Controlled Multi-Port Electronic Fuel Injection (EFI)
Alternator amp / Watt 60 amp / 756 watt (Belt-Driven)
Recommended fuel Unleaded 91 RON Minimum
Recommended oil Mercury FourStroke Oil 10W-30
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Electric (turn-key)

Smart Start Electric

Controls Mechanical throttle & shift
Steering Big Tiller Compatible

Dual cable mechanical

Electro-Hydraulic Power Steering Optional on Duals

Hydraulic power steering

Shaft length 20″ / 508 mm

25″ / 635 mm

Gearcase ratio 1.92:1
Dry weight *Lightest model available 455 lbs / 206 kg
Emissions Star Rating 3
Bore and stroke 4.0 x 3.6″ / 102 x 92 mm
Ignition SmartCraft ECM 70 Digital Inductive
Fuel system Electronic Fuel Injection (EFI)
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options Standard
Trim system Power Tilt

Power Trim

Exhaust system Through prop
Counter Rotation Available
Color Phantom Black
Lubrication system Wet sump
Oil Capacity 6.3 qts / 6.0l
Maximum Trim Range 22° (-6° to 16°)
Maximum Tilt Range 73° (-6° to 67°)
