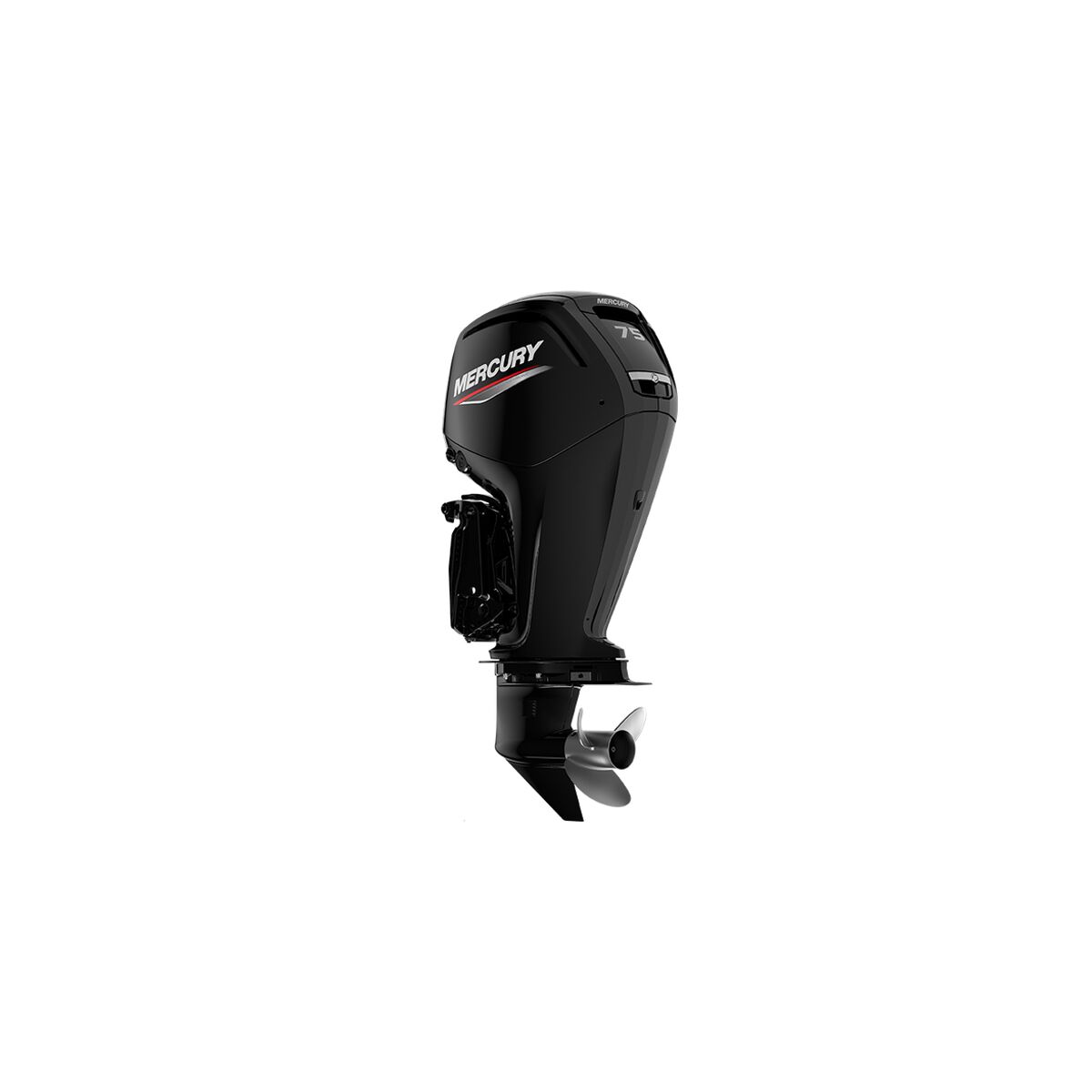

FourStroke 75hp

Category:

Description

Enjoy the same lifetime maintenance-free valvetrain design found in our 150 FourStroke motors. Great for deck, inshore fishing, bass, aluminum console, runabout open bow, inflatable rigid hull, and fish & ski boats.

SPECIFICATIONS

HP / kW 75 / 56
Engine type 8-valve single overhead cam (SOHC)

Inline 4

Displacement (L) 2.1
Full throttle RPM 4500-5500
Air induction Performance-Tuned Scroll Intake Manifold
Fuel induction system Computer Controlled Multi-Port Electronic Fuel Injection (EFI)
Alternator amp / Watt 35 amp / 441 watt with water-cooled voltage regulator
Recommended fuel Unleaded 91 RON Minimum
Recommended oil Mercury FourStroke Oil 10W-30
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Smart Start Electric
Controls Mechanical throttle & shift
Steering Big Tiller Compatible

Dual cable mechanical

Hydraulic power steering

Shaft length 20″ / 508 mm
Gearcase ratio 2.07:1
Dry weight *Lightest model available 359 lbs / 163 kg
Emissions Star Rating 3
Bore and stroke 3.5 x 3.2″ / 90 x 81 mm
Ignition SmartCraft ECM 70 Digital Inductive
Fuel system Electronic Fuel Injection (EFI)
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options Standard
Trim system Power Tilt

Power Trim

Exhaust system Through prop
Shallow water trim range (degrees) 20
Color Phantom Black
Lubrication system Wet sump
Oil Capacity 5.5 qts / 5.2 l
Maximum Trim Range 22° (-6° to 16°)
Maximum Tilt Range 70° (-6° to 64°)
