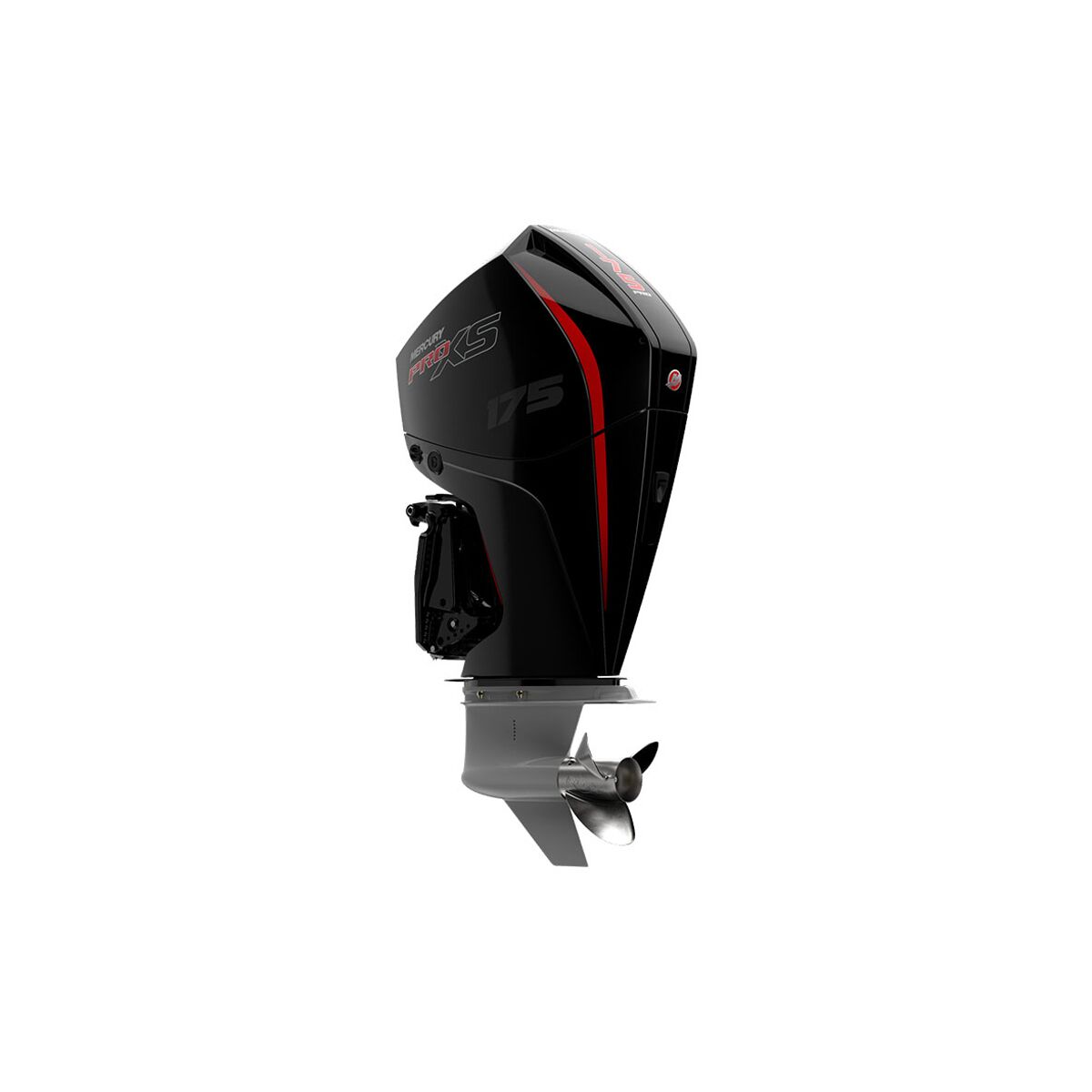

ProXS 175hp

Category:

Description

Engineers packed incredible power into this lightweight and compact outboard. Great for bass and multi-species fishing boats.

SPECIFICATIONS – 175

HP / kW 175 / 130
Engine type V6
MidSection Conventional MidSection
Displacement (CID/CC) 209
Displacement (L) 3.4
Cylinder Configuration V-6 [64 degree] with Dual Overhead Cam [DOHC] and 24-valves
Full throttle RPM 5400-6000
Air induction Performance-Tuned Long-Runner Intake Manifold
Fuel induction system Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
Alternator amp / Watt 85-amp (1071 Watt) with Idle Charge
Recommended fuel Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil NMMA Certified FCW SAE 10W-30
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Electric Start with SmartStart Protection
Controls Remote Mechanical
Steering Big Tiller (optional)

Hydraulic (standard)

Power (optional)

Shaft length 20″ / 508 mm

25″ / 635 mm

Gearcase ratio 1.85:1
Dry weight *Lightest model available 470 lbs / 213 kgs
CARB star rating 3
Bore and stroke 3.6 in x 3.4 in / 92 mm x 86 mm
Ignition SmartCraft PCM 112 Digital Inductive
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options 4.8″
Trim system Power trim and tilt
Exhaust system Through prop
Color Phantom Black
Lubrication system Integrated wet sump
Oil Capacity 7.0 Quarts / 6.6 Liters
Maximum Trim Range 20° (-6° to 14°)
Maximum Tilt Range 73° (-6° to 67°)
