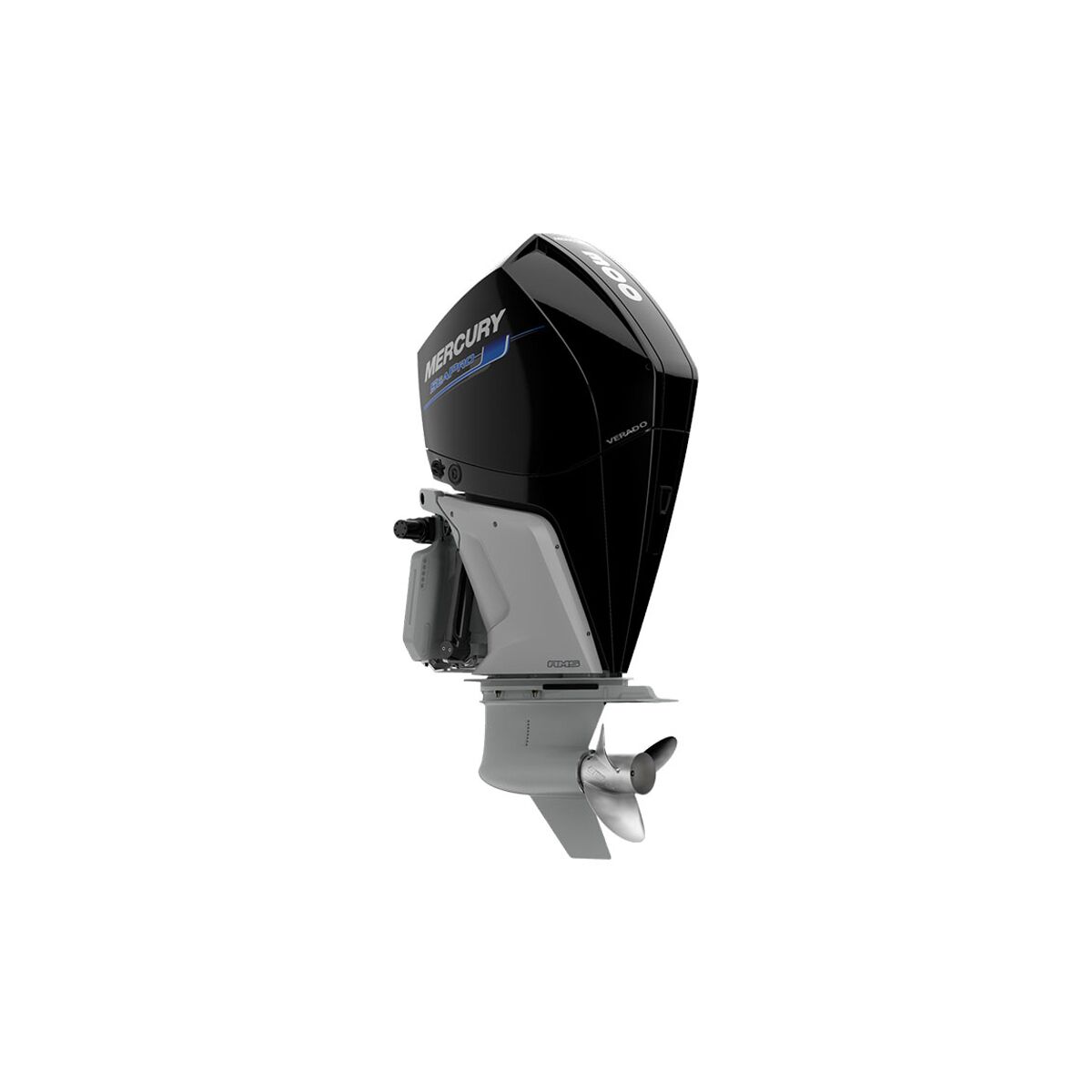

SeaPro 300 AMS

Category:

Description

Ideal for commercial fishing, commercial workboats and law-enforcement boats. Available with joystick piloting, electro-hydraulic power steering and Mercury’s Advanced MidSection (AMS). The Advanced MidSection virtually eliminates vibration being transmitted to the boat, while joystick piloting provides maximum control and manoeuverability.

SPECIFICATIONS – 300 AMS

HP / kW 300/224
Engine type V8
MidSection Advanced MidSection (AMS)
Displacement (CID/CC) 279 CID
Displacement (L) 4.6L
Cylinder Configuration V-8 [64 degree] with Dual Overhead Cam [DOHC] and 32-valves
Full throttle RPM 4800-5600
Air induction Performance-Tuned Long-Runner Intake Manifold
Fuel induction system Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
Alternator amp / Watt 115-amp (1449 Watt) with Idle Charge
Recommended fuel Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil NMMA Certified FCW SAE 25W-40 (Optional 10W-30 for Cold Conditions)
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Electric Start with SmartStart Protection
Controls Digital Throttle & Shift (DTS)
Steering Electro-hydraulic power steering

Joystick Piloting for Outboards

Shaft length 20″ / 508 mm

25″ / 635 mm

30″ / 762 mm

Gearcase ratio 1.75:1
Dry weight *Lightest model available 600 lbs / 272 kgs
CARB star rating 3
Bore and stroke 3.6 in x 3.4 in / 92 mm x 86 mm
Ignition SmartCraft PCM 112 Digital Inductive
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Gearcase options 5.44″
Trim system Power trim and tilt
Exhaust system Through prop
Counter Rotation Available
Color Phantom Black
Lubrication system Integrated wet sump
Oil Capacity 7.0 Quarts / 6.6 Liters
Maximum Trim Range 20° (-6° to 14°)
Maximum Tilt Range 73° (-6° to 67°)
