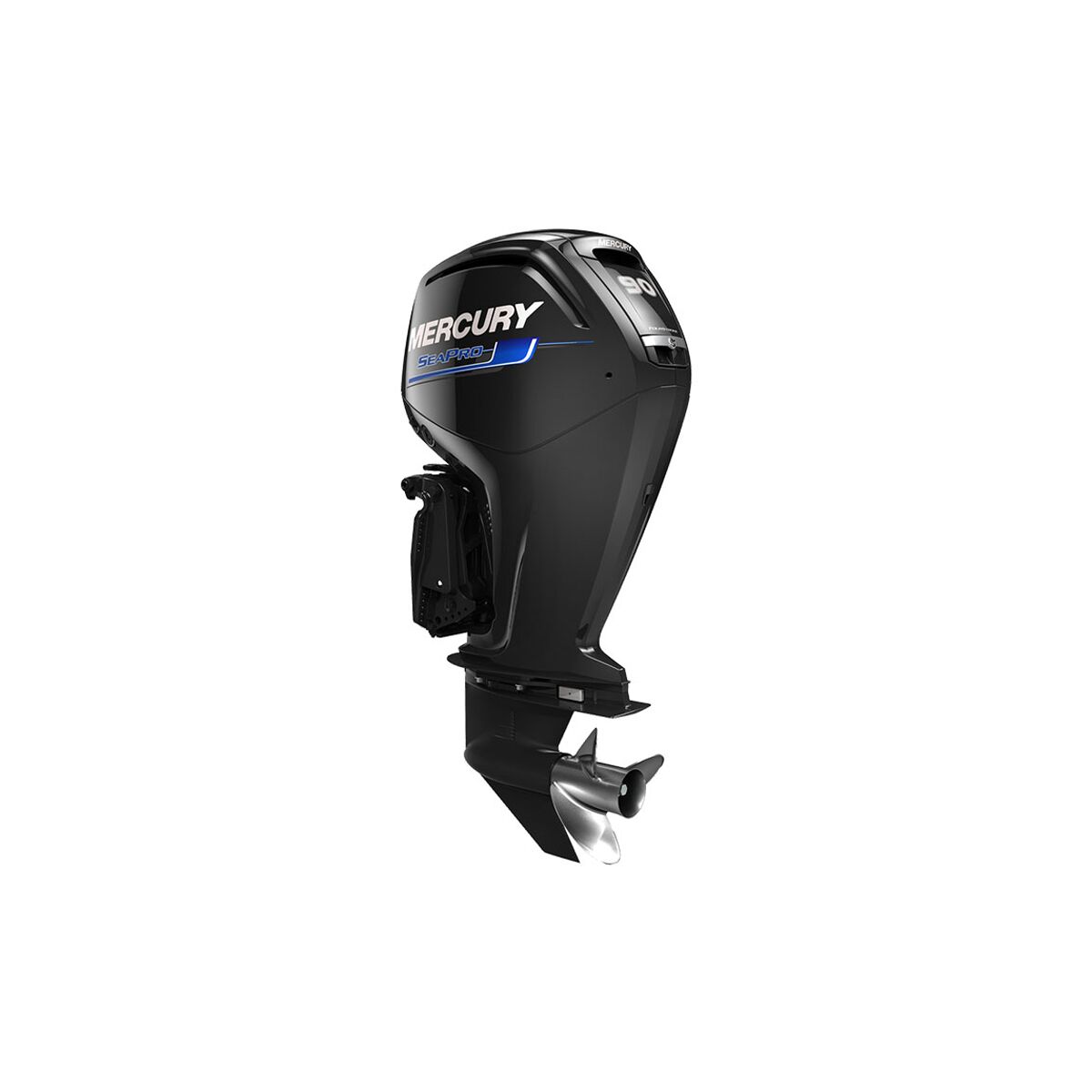

SeaPro 90hp

Category:

Description

The engine built for you to depend on, offering trouble-free, low-maintenance performance in the harshest working environments. For commercial fishing vessels, commercial workboats and law-enforcement boats.

SPECIFICATIONS – 90

HP / kW 90 / 67
Engine type 8-valve single overhead cam (SOHC)

Inline 4

Displacement (L) 2.1
Full throttle RPM 5000-5500
Air induction Performance-Tuned Scroll Intake Manifold
Fuel induction system Computer Controlled Multi-Port Electronic Fuel Injection (EFI)
Alternator amp / Watt 35 amp / 441 watt with water-cooled voltage regulator
Recommended fuel Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil NMMA Certified FCW 25W-40 Synthetic Blend
Engine protection operator warning system SmartCraft Engine Guardian
Compatible with SmartCraft digital technology Yes
Starting Smart Start Electric
Controls Mechanical throttle & shift
Steering Big Tiller

Dual cable mechanical

Hydraulic

Shaft length 20″ / 508 mm

25″ / 635 mm

Gearcase ratio 2.38:1
Dry weight *Lightest model available 363 lbs / 165 kg
Bore and stroke 3.5 x 3.2″ / 90 x 81 mm
Ignition SmartCraft ECM 70 Digital Inductive
Fuel system Electronic Fuel Injection (EFI)
Cooling system Water-cooled with thermostat
Gear shift F-N-R
Trim system Power Tilt

Power Trim

Exhaust system Through prop
Shallow water trim range (degrees) 20
Color Phantom Black
Lubrication system Wet sump
Oil Capacity 5.5 qts / 5.2 l
Maximum Trim Range 22° (-6° to 16°)
Maximum Tilt Range 70° (-6° to 64°)
